Specular component

The specular component is responsible for sharp mirror-like reflection from a surface. It can be expressed as a product:

dI_r,sp = |F|² • e^-g • S • I_i

(5)

where |F|² is the Fresnel reflectivity, which is a function of the incidence angle and the refractive index n of the material, g is a function of the surface roughness, and S is a geometrical shadowing function.

The following interactive display illustrates how the Fresnel term |F|² varies with θ_i and n. The incidence angle θ_i is evaluated at the center of the incident light cone on the left. The length of the cone of reflection on the right is proportional to the magnitude of |F|^2. The solid-line semicircle is of unit radius and is included for reference.

Figure 6: Interactive display of Fresnel term |F|^2. Double click the figure to activate the control panel; click “Play” to activate a demonstration.

The function g, which depends on the effective surface roughness σ, is given by:

t2h_il480

Within the specular cone, cosθ_i = cosθ_r, and g reduces to g = (4πσ cosθ_i/λ)². The influence of roughness is then described by the group σ cosθ_i/λ, which is the ratio of the projected effective roughness to the wavelength, also known as the “apparent” roughness. The roughness parameters σ and τ are shown schematically in Figure 7. The projection of the effective roughness into the incident light direction is σ cos θ_i. A surface appears rough or smooth to an incident light wave depending upon whether the apparent roughness is large or small, respectively. Note that all surfaces appear smooth as the incident light approaches grazing angles, that is, as θ_i approaches 90° and cos θ_i approaches zero.

t2h_il524

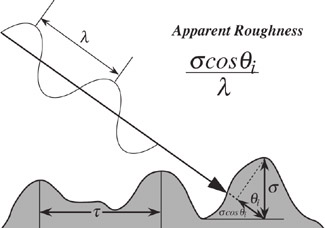

Figure 7: Schematic of rough surface and incident light wave

The interactive figure below illustrates how the exponential e^-g varies with θ_i, σ, τ and τ. The effective roughness σ is generally smaller than the root-mean-square vertical surface roughness height σ₀ due to shadowing effects. Although σ is a function of θ_i, θ_r, τ, and σ₀, it is found that σ depends primarily on σ₀ [HE91]. For this reason, σ₀ is the parameter varied on the “sigma” slider of the control panels. The τ-dependence of e^-g arises from the secondary dependence of the effective roughness σ on τ. In Figure 8, the solid-line semicircle is the unit hemisphere. The length of the cone of reflection is proportional to e^-g. A statistically-generated Gaussian rough surface topography is shown schematically, with the vertical scale amplified with respect to the horizontal (by about a factor of ten).

Figure 8: Interactive display of e^-g term. Double click the figure to activate.

The shadowing term S is illustrated below. It varies with σ₀ and τ. The solid-line semicircle is the unit hemisphere, representing the limit of no shadowing. The function S is defined in [HE91].

Figure 9: Interactive display of shadowing term S

Finally, let's see how the entire specular component dI_r,sp varies with the parameters θ_i, σ, τ, λ material. The length of the cone of reflection on the right side in Figure 10 is proportional to dI_r,sp. The solid-line semicircle has a radius equal to the incident radiance, I_i. This limit is achieved for ideal-specular, 100% reflection of the incident beam.

Figure 10: Interactive display of entire specular term
